Optical Gaging Products (OGP®), a world-leading manufacturer of optical and precision multisensor metrology systems for industrial quality control, is proud to announce the addition of SmartScope E7, the first in the all-new SmartScope E-Series family of 3D Multisensor Measurement Systems.
OGP® SmartScope measurement systems are one of the world’s most popular and versatile dimensional measurement systems for precision measurement challenges. Designed to be multisensor systems from the ground up, SmartScopes combine optical, laser, and tactile sensors integrated seamlessly with the system mechanics and software. All sensors are simultaneously calibrated and available for use at any step in the measurement routine.
Why Multisensor?
Multisensor measurement systems provide complete 3D measurement data from a single measuring machine. Video, contact probes, laser, and micro-probes combine for total part characterization, with better accuracy, in a fraction of the time it would take to do on separate measuring systems. By using the best type of sensor for individual dimensions, multisensor systems measure parts faster, more thoroughly, and more accurately. This added versatility translates into lower capital expense and lower operating costs for your benefit.
OGP pioneered and introduced the world’s first multisensor measurement system in 1986. Since then, OGP has consistently led the industry with a succession of innovative systems and sensors to tackle the most difficult measurement challenges.
About SmartScope E7

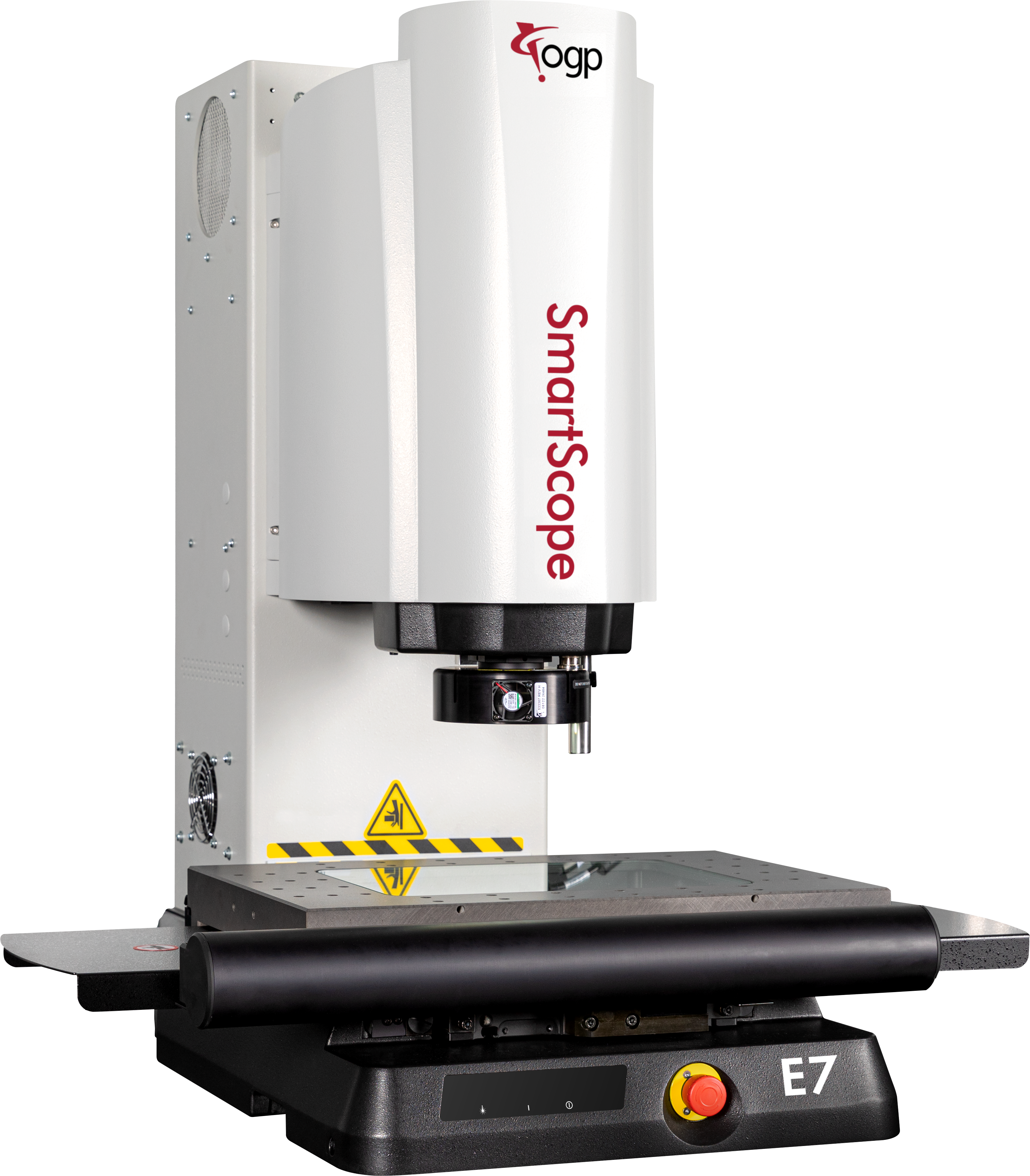

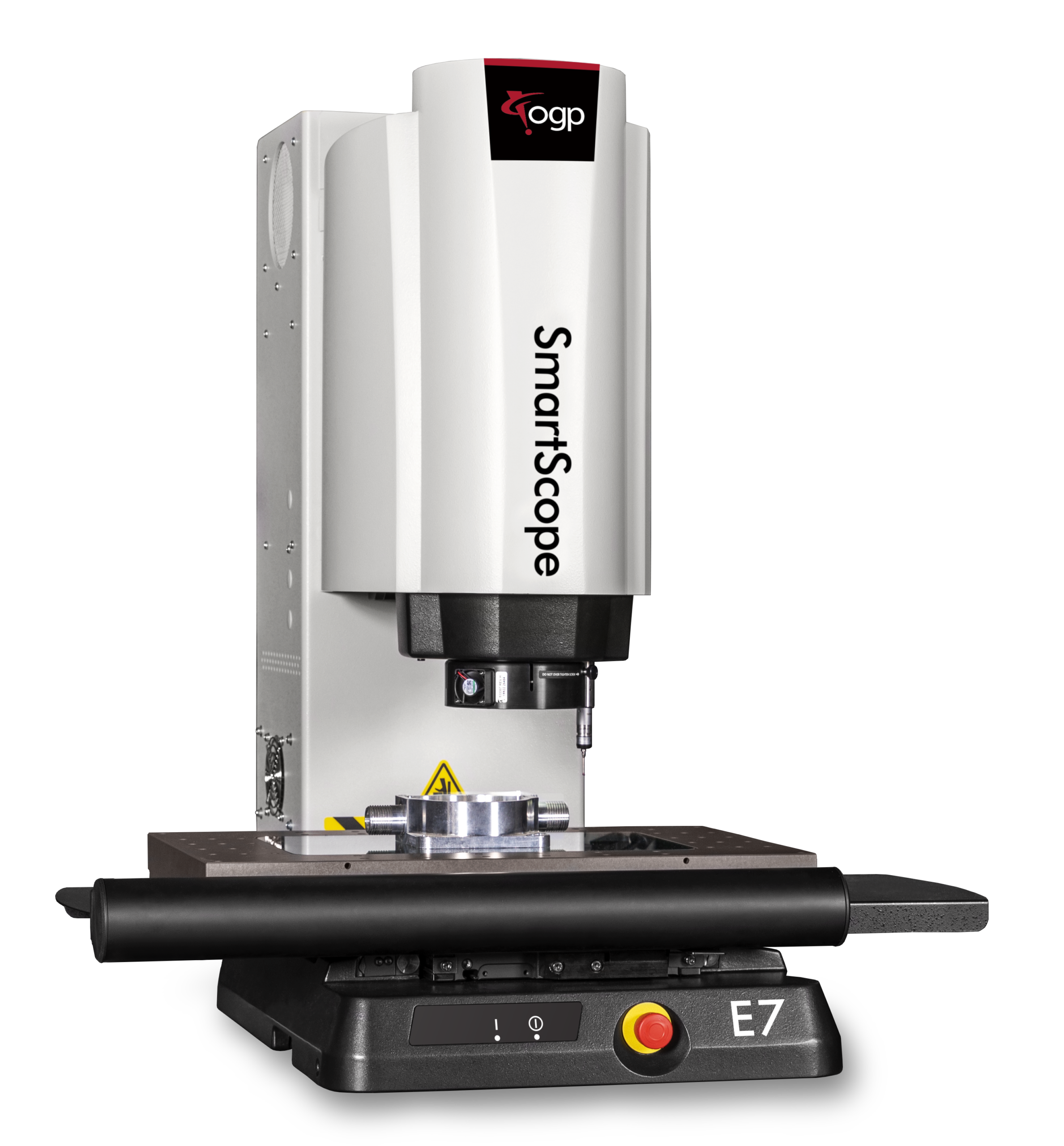

SmartScope® E7 is the newest addition to the SmartScope line, and sets the standard for 3-axis video measurement performance. This fully automatic system features the IntelliCentric™ fixed lens optical system with 6-megapixel camera and 5 position digital zoom. The combination provides a high-resolution image engineered for video edge detection metrology.
Innovative Features
A heavy-duty cast base and integral compound stage with Y-axis center drive provides stability. All LED coaxial, substage profile, and VectorLight ring light illumination is standard. Optional TP-20 and TP-200 touch probes make SmartScope E-Series systems fast, accurate, and flexible 3D multisensor metrology systems.
